PMD Compression

Simple PMD compression, the hello world of masknmf

/home/runner/work/masknmf-toolbox/masknmf-toolbox/masknmf/utils/_cuda.py:7: UserWarning: You've explicitly selected to perform computations on the cpu, performance will be significantly slower
  warn(
[25-11-20 21:02:39]: Starting compression
[25-11-20 21:02:39]: sampled from the following regions: [0]
[25-11-20 21:02:39]: We are initializing on a total of 2000 frames
[25-11-20 21:02:39]: Loading data to estimate complete spatial basis
[25-11-20 21:02:39]: skipping the pruning step for frame cutoff
[25-11-20 21:02:39]: Finding spatiotemporal roughness thresholds

  0%|          | 0/250 [00:00<?, ?it/s]
  2%|▏         | 5/250 [00:00<00:05, 47.55it/s]
  4%|▍         | 11/250 [00:00<00:04, 49.16it/s]
  6%|▋         | 16/250 [00:00<00:04, 49.44it/s]
  8%|▊         | 21/250 [00:00<00:04, 49.61it/s]
 11%|█         | 27/250 [00:00<00:04, 49.83it/s]
 13%|█▎        | 33/250 [00:00<00:04, 49.91it/s]
 16%|█▌        | 39/250 [00:00<00:04, 50.01it/s]
 18%|█▊        | 45/250 [00:00<00:04, 50.04it/s]
 20%|██        | 51/250 [00:01<00:03, 50.05it/s]
 23%|██▎       | 57/250 [00:01<00:03, 50.15it/s]
 25%|██▌       | 63/250 [00:01<00:03, 50.19it/s]
 28%|██▊       | 69/250 [00:01<00:03, 50.08it/s]
 30%|███       | 75/250 [00:01<00:03, 49.20it/s]
 32%|███▏      | 80/250 [00:01<00:03, 48.51it/s]
 34%|███▍      | 86/250 [00:01<00:03, 49.00it/s]
 37%|███▋      | 92/250 [00:01<00:03, 49.31it/s]
 39%|███▉      | 98/250 [00:01<00:03, 49.54it/s]
 42%|████▏     | 104/250 [00:02<00:02, 49.60it/s]
 44%|████▍     | 110/250 [00:02<00:02, 49.78it/s]
 46%|████▋     | 116/250 [00:02<00:02, 49.89it/s]
 49%|████▉     | 122/250 [00:02<00:02, 50.04it/s]
 51%|█████     | 128/250 [00:02<00:02, 50.12it/s]
 54%|█████▎    | 134/250 [00:02<00:02, 50.19it/s]
 56%|█████▌    | 140/250 [00:02<00:02, 50.32it/s]
 58%|█████▊    | 146/250 [00:02<00:02, 50.35it/s]
 61%|██████    | 152/250 [00:03<00:01, 50.22it/s]
 63%|██████▎   | 158/250 [00:03<00:01, 50.25it/s]
 66%|██████▌   | 164/250 [00:03<00:01, 50.16it/s]
 68%|██████▊   | 170/250 [00:03<00:01, 50.02it/s]
 70%|███████   | 176/250 [00:03<00:01, 49.80it/s]
 72%|███████▏  | 181/250 [00:03<00:01, 49.49it/s]
 74%|███████▍  | 186/250 [00:03<00:01, 49.34it/s]
 76%|███████▋  | 191/250 [00:03<00:01, 49.32it/s]
 78%|███████▊  | 196/250 [00:03<00:01, 49.34it/s]
 80%|████████  | 201/250 [00:04<00:00, 49.22it/s]
 82%|████████▏ | 206/250 [00:04<00:00, 49.36it/s]
 84%|████████▍ | 211/250 [00:04<00:00, 49.51it/s]
 86%|████████▋ | 216/250 [00:04<00:00, 49.47it/s]
 88%|████████▊ | 221/250 [00:04<00:00, 49.62it/s]
 91%|█████████ | 227/250 [00:04<00:00, 49.74it/s]
 93%|█████████▎| 233/250 [00:04<00:00, 49.78it/s]
 96%|█████████▌| 239/250 [00:04<00:00, 49.81it/s]
 98%|█████████▊| 245/250 [00:04<00:00, 49.85it/s]
100%|██████████| 250/250 [00:05<00:00, 49.77it/s]
100%|██████████| 250/250 [00:05<00:00, 49.73it/s]
[25-11-20 21:02:44]: Running Blockwise Decompositions
[25-11-20 21:02:44]: Constructed U matrix. Rank of U is 162
[25-11-20 21:02:44]: PMD Objected constructed
/opt/hostedtoolcache/Python/3.12.12/x64/lib/python3.12/site-packages/fastplotlib/graphics/features/_base.py:18: UserWarning: casting float64 array to float32
  warn(f"casting {array.dtype} array to float32")

# test_example = true

import masknmf
import torch
import fastplotlib as fpl
from urllib.request import urlretrieve
import tifffile


urlretrieve(
    "https://github.com/flatironinstitute/CaImAn/raw/refs/heads/main/example_movies/demoMovie.tif",
    "./demo.tif"
)

# always lazy load raw data by memmaping or other methods
data = tifffile.imread("./demo.tif")

block_sizes = [32, 32]
max_components = 20

# it's recommended to use masknmf on a machine with a GPU
# device = "cuda" if torch.cuda.is_available() else "cpu"
device = "cpu"
# number of frames used to estimate the spatial basis in PMD
num_frames_for_spatial_fit = data.shape[0]

# perform PMD
pmd_result = masknmf.compression.pmd_decomposition(
    data,
    block_sizes,
    num_frames_for_spatial_fit,
    max_components=max_components,
    device=device,
    frame_batch_size=1024
)

# get the residual
pmd_residual = masknmf.PMDResidualArray(data, pmd_result)

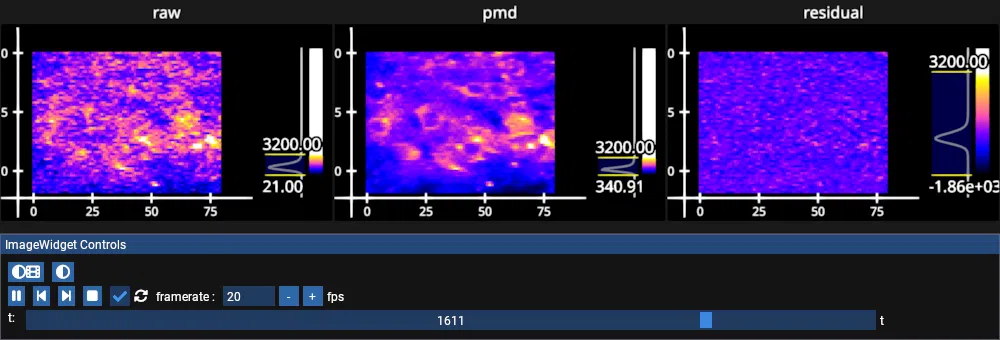

# view the movies, note that all these array are LAZY evaluated, allowing you to view extremely large datasets!
iw = fpl.ImageWidget(
    data=[data, pmd_result, pmd_residual],
    names=["raw", "pmd", "residual"],
    figure_kwargs={"size": (1000, 340), "shape": (1, 3)},
    cmap="gnuplot2",
)

iw.show()

# use the time slider or set the frame index programmatically
iw.current_index = {"t": 1610}

# manually set vmin-vmax to emphasize noise in raw video
# you can also adjust the vmin-vmax using the histogram tool
# reset the vmin-vmax by clicking the buttons under "ImageWidget Controls"
for image in iw.managed_graphics:
    image.vmax = 3_200

# remove toolbar to reduce clutter
for subplot in iw.figure:
    subplot.toolbar = False


# ignore the remaining lines these are just for docs generation
figure = iw.figure
if __name__ == "__main__":
    print(__doc__)
    fpl.loop.run()
